MACHINE REFERENCE

Compaq Portable

The Compaq Portable shipped in March 1983 as the first portable that could run IBM PC software, using a BIOS Compaq had reverse-engineered rather than copied.

Why it matters

The Compaq Portable showed that a company could build an IBM PC-compatible machine legally, and sell it for $2,995 in a case you could carry. Compaq sold 53,000 in its first year. It weighed 28 lb and had a 9-inch green screen, but it ran the same software as the IBM PC 5150.

What to check before you buy

  • Check the keyboard for dead keys; the foam pads fail with age.
  • Test the built-in screen for brightness and ghosting.
  • Ask about the floppy drives and the hard drive if fitted.
  • Confirm it has the carrying handle and the keyboard lid, which are often missing.
  • Check the power supply works before connecting it to mains.

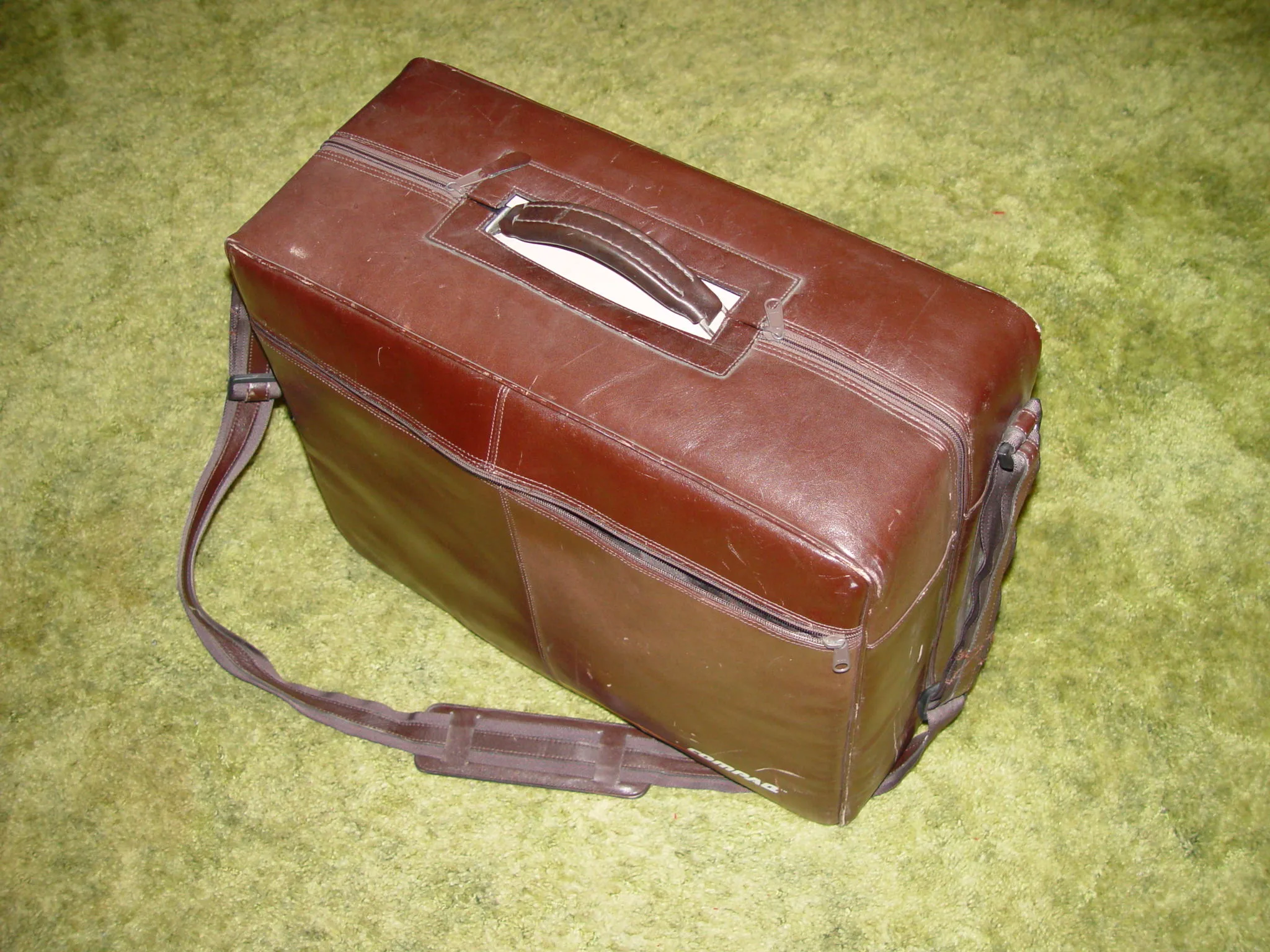

Compaq Portable computer from 1983

Photo: Dmitry Brant, Wikimedia Commons (CC BY-SA 4.0)

Released

1983

RAM

128 KB, expandable to 640 KB

CPU

Intel 8088, 4.77 MHz

Launch price

$2,995 with one floppy drive; $3,590 with two (US)

Manufacturer

Compaq Computer Corporation

Form factor

Luggable computer, 28 lb (13 kg), with a built-in 9-inch green screen

CPU

Intel 8088, 4.77 MHz

Chipset

Unknown

RAM

128 KB, expandable to 640 KB

ROM

Compaq’s own reverse-engineered BIOS, compatible with the IBM PC

Graphics

Hybrid CGA and MDA-compatible video card, with a built-in 9-inch green monochrome monitor

Audio

Unknown

Storage

One or two 5.25-inch floppy drives (360 KB); a 10 MB hard drive optional

Ports

Parallel port, CGA monitor port, power input

OS

MS-DOS (Compaq DOS 1.10 at first, later 2.00 and above)

PSU

Internal

Units sold

53,000 in the first year

Successors

Compaq Portable Plus (1983), Portable 286 (1985), Portable II, III, 386 and 486

  • Deteriorating keyboard foam pads
    The foam and foil pads under the keys break down with age, so keys stop working or feel mushy.
  • Dim, ghosting CRT
    The built-in monitor has a low refresh rate and heavy ghosting, and an old tube may be weak.
  • 1982 Compaq announces the Portable in November
  • 1983 The first Compaq Portable ships in March
  • 1983 Compaq releases the Portable Plus
  • 1985 The Portable 286 follows
