MACHINE REFERENCE

Commodore Amiga 1000

The Commodore Amiga 1000 was introduced on 23 July 1985 as the first Amiga, with a 68000 processor, custom chips for graphics and sound, and an operating system loaded from floppy disk every time you switched it on.

Why it matters

The A1000 combined a 4,096-colour palette, four-channel stereo sound and a multitasking operating system in one box. It cost $1,285 at launch and was replaced by the Amiga 2000 and the cheaper Amiga 500. It is the machine every later Amiga is measured against.

What to check before you buy

  • Check that Kickstart disks are included; the operating system loads from floppy at every power-on.
  • Test the keyboard, which is a separate unit and often has dead keys.
  • Ask about the memory daughterboard and whether it works.
  • Look at the case for yellowing, which is common and hard to reverse.
  • Check that the floppy drive reads and that the monitor lead is the right one for the display.

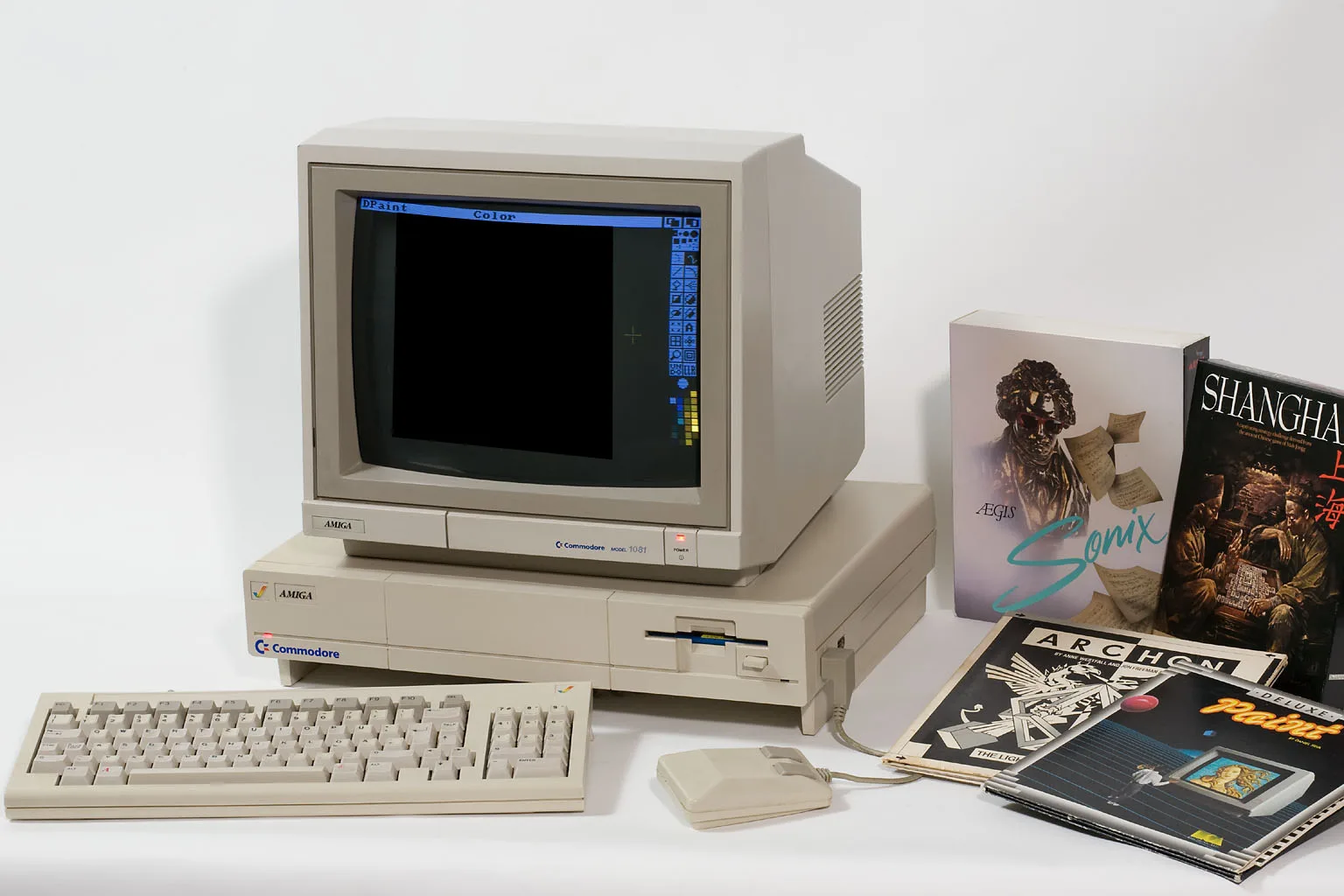

Commodore Amiga 1000 with Commodore 1081 monitor

Photo: Kaiiv, Wikimedia Commons (CC BY-SA 3.0 de)

Released

1985

RAM

256 KB standard; 512 KB with the daughterboard; up to 8.5 MB with external cartridges

CPU

Motorola 68000, 7.16 MHz (NTSC) or 7.09 MHz (PAL)

Launch price

$1,285 (US)

Manufacturer

Commodore International

Form factor

Desktop base unit with detachable keyboard

CPU

Motorola 68000, 7.16 MHz (NTSC) or 7.09 MHz (PAL)

Chipset

Original Chip Set (Agnus, Denise, Paula)

RAM

256 KB standard; 512 KB with the daughterboard; up to 8.5 MB with external cartridges

ROM

8 KB bootstrap ROM; 256 KB Writable Control Store loaded from the Kickstart floppy

Graphics

640 x 512 interlaced; 12-bit palette (4,096 colours) with 32, 64 (EHB) or 4,096 (HAM) colours on screen

Audio

Paula: four 8-bit PCM channels in stereo, up to 28 kHz

Storage

3.5-inch 880 KB floppy

Ports

RGB video, composite video, TV modulator, keyboard, two mouse and game ports, serial, parallel, external floppy, 86-pin expansion port

OS

AmigaOS 1.0 (Kickstart and Workbench 1.0 to 1.3)

PSU

External power supply

Units sold

Unknown

Successors

Amiga 2000 and Amiga 500

  • Early AmigaOS bugs
    The operating system loaded from floppy at launch was reported as buggy, and memory problems affected early versions. Check which Kickstart disk comes with it.
  • Screen flicker in high resolution
    The 640 x 512 interlaced mode flickers on a standard monitor. It is how the hardware works, not a faulty machine.
  • 1985 Developer preproduction machines appear early in the year
  • 1985 Commodore introduces the Amiga 1000 on 23 July
  • 1985 Manufacturing starts in September and retail sales in October
  • 1987 The Amiga 1000 is discontinued
